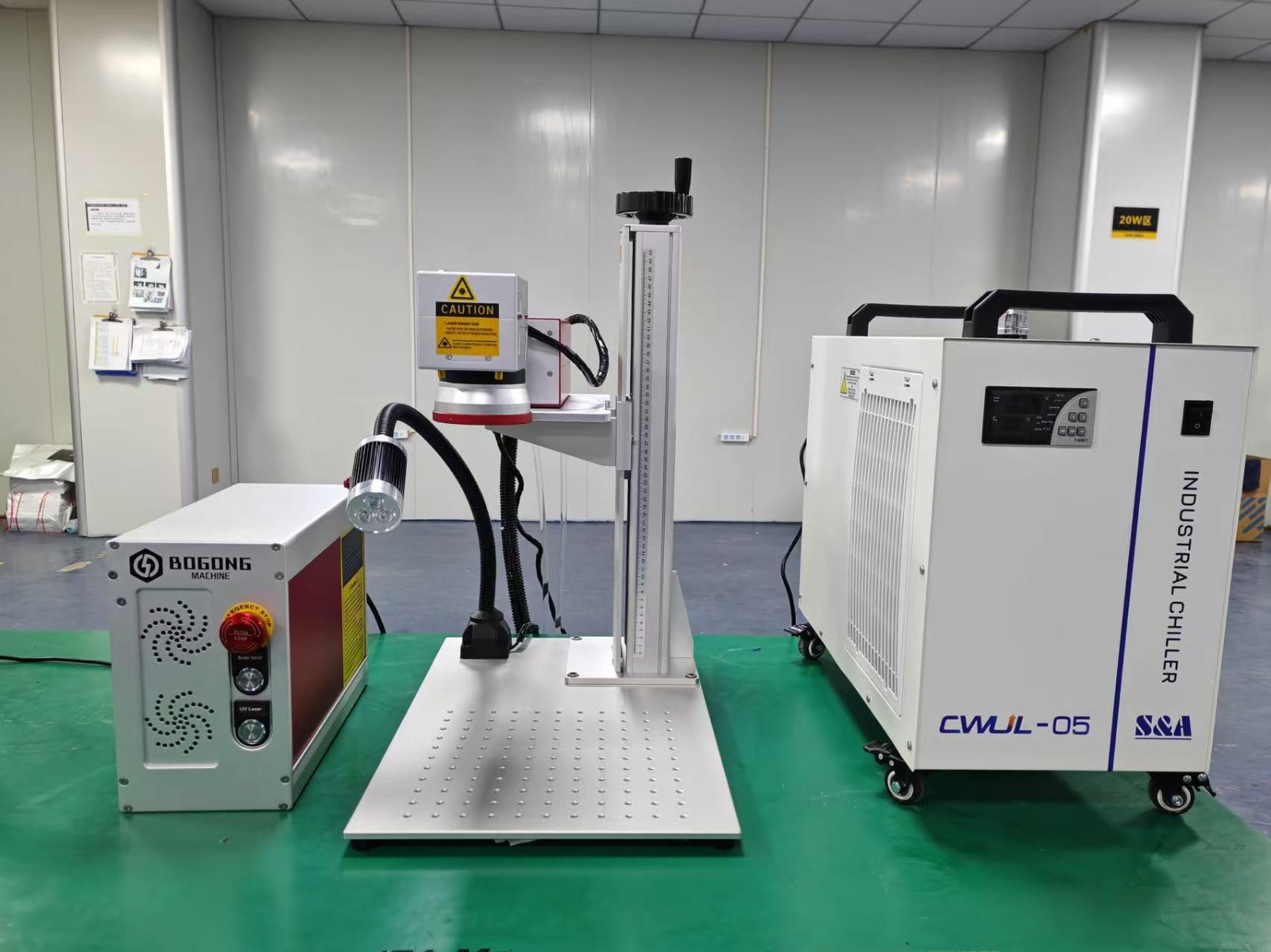

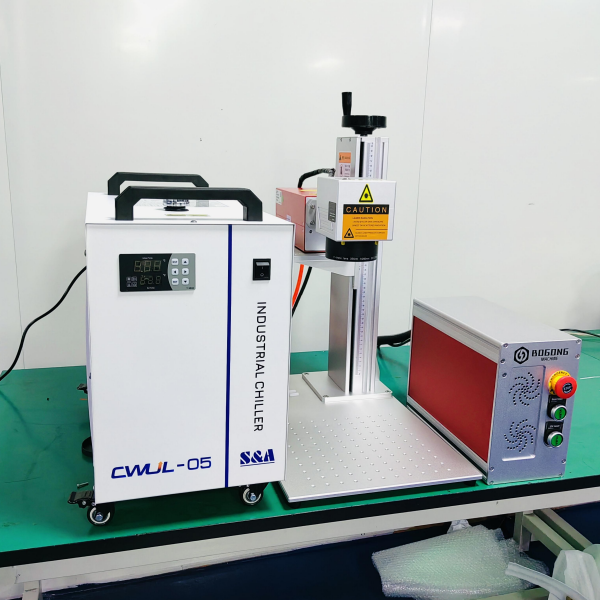

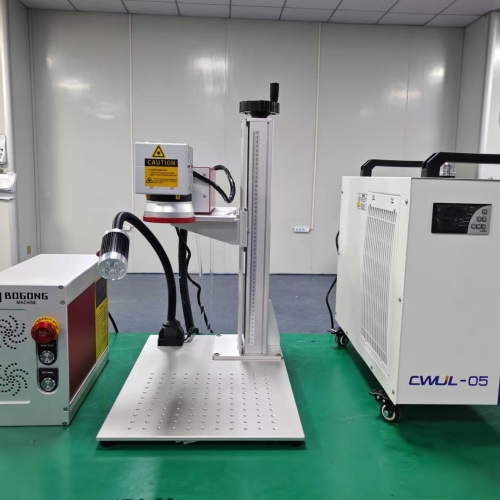

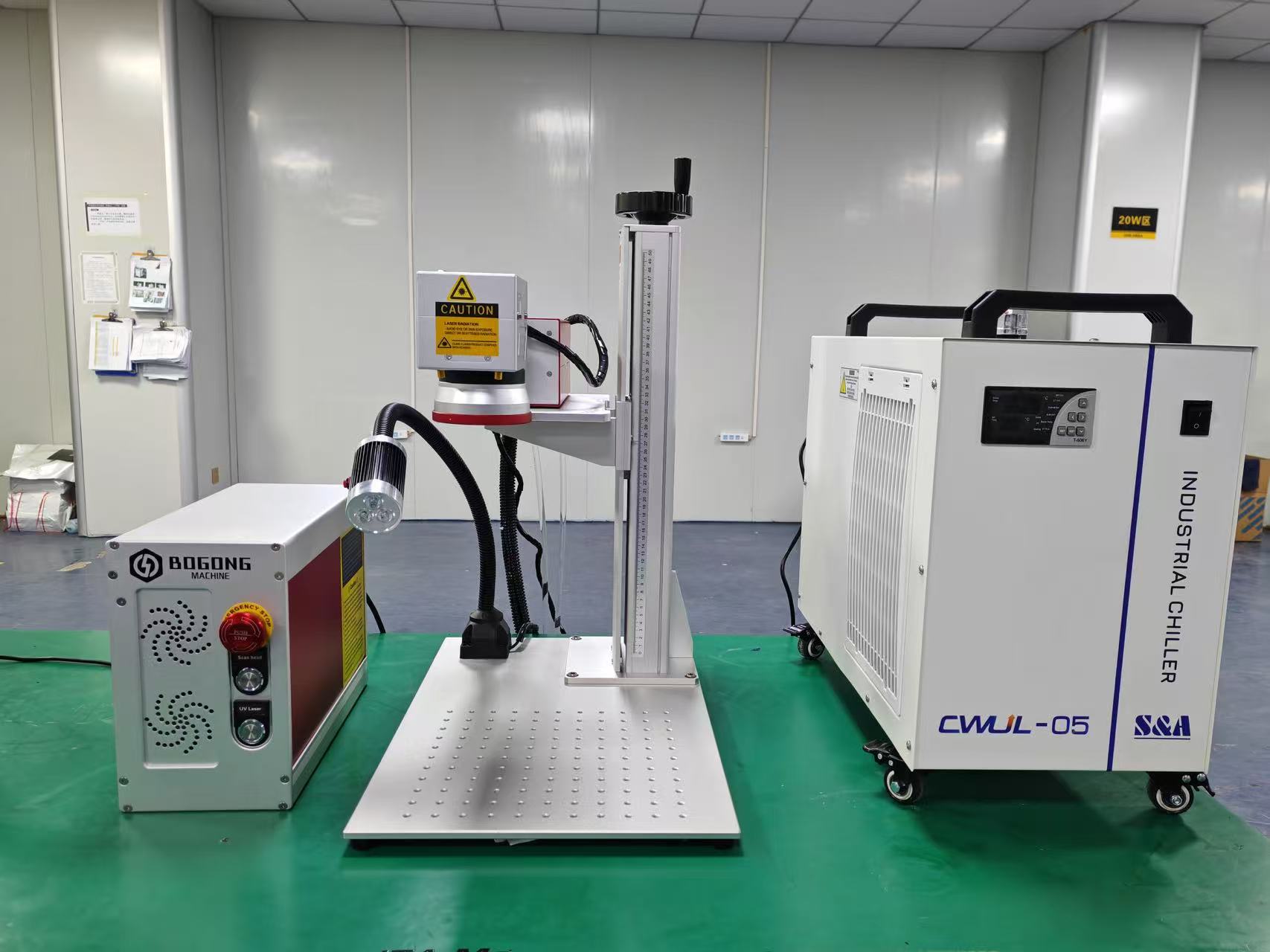

Mini type Laser Marking Machine
Brief introduction
Optical Fiber laser marking machine is a kind of professional laser marking equipment which integrated light, machine, electricity,Independent research and development and production. Our machine with advantage of novel style, unique structure, convenientoperation, high frequency modulation, high marking speed and precision, stable performance, widely used in all kinds of metallicand nonmetallic surface for permanent marker.
Marking principle
*Through the laser light energy evaporate the material in the surface and show deep material;
*Through the laser light energy cause the surface substance chemical physical change and "engrave" the needed text pattern;
*Through the laser light energy burned part of the material, then show the design, text of etching.
Equipment installation requirements
Laser marking machine as possible as used in the environment of clean, 10 ℃-35 ℃, and keep the optical device dry, clean. Usually need an separate closed workshop, to assure indoor constant temperature, the ground need floor lacquer or ceramic tile,
installation of air conditioner. The customer shall provide the support of at least 1000 W power single-phase ac power supply, the main power cord of our
equipment should be installed in air switch to do protection, it is strictly prohibited to use triangle plugs. The customer provide the main power supply must be with ground, it is strictly prohibited virtual connection!
▲Do not operation in wet environment.
▲Do not operation in explosive environment.
▲Keep the surface clean and dry.
▲Suggest each related works reading this manual.
▲operator do not leave machine when machine working

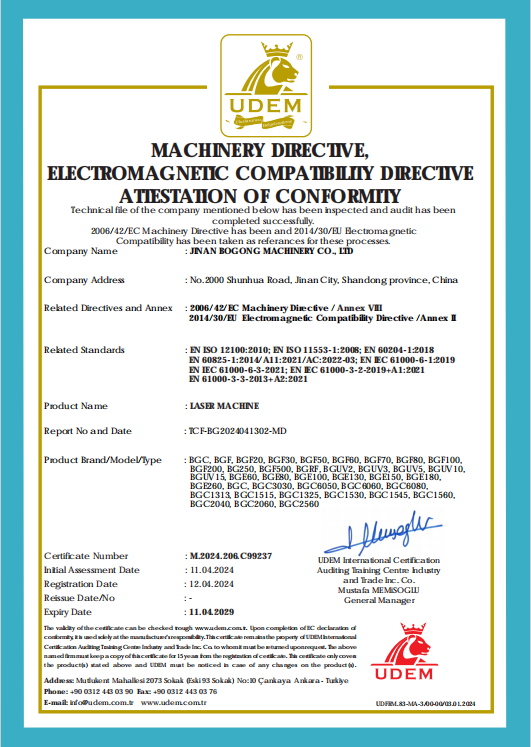

authentication
