Product Advantage

1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.

2.Touch and leakage current values remain within required limits, without further measures.

3.The power factor is 0.99, therefore the available mains power is used to the maximum.

4.The charging current contains a very low ripple.

5.Charging from single or three-phase outlet.

6.Parallel connection of several chargers is possible, in order to achieve higher charging power.

7.Highly efficient (Max 95%).

8.Core Power Module is IP 67 Protection level, robust against dust, humidity, vibration etc.

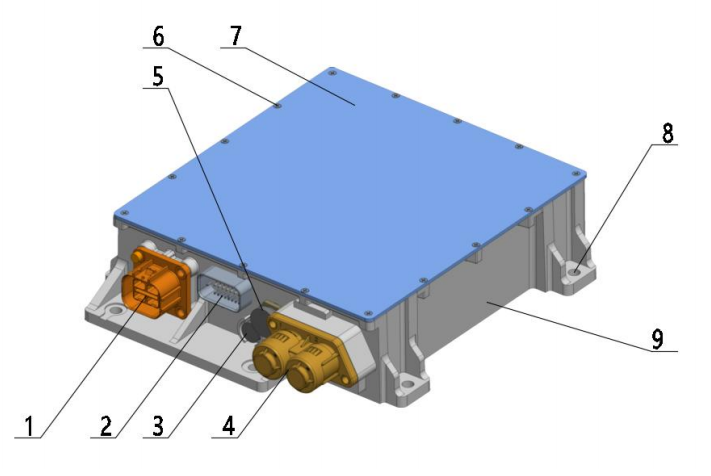

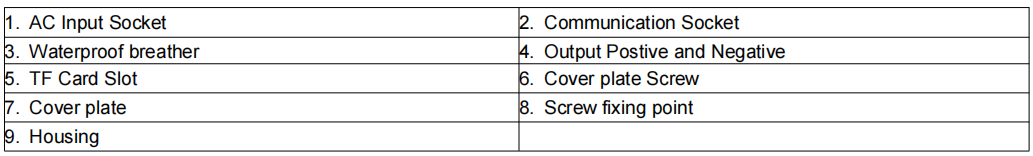

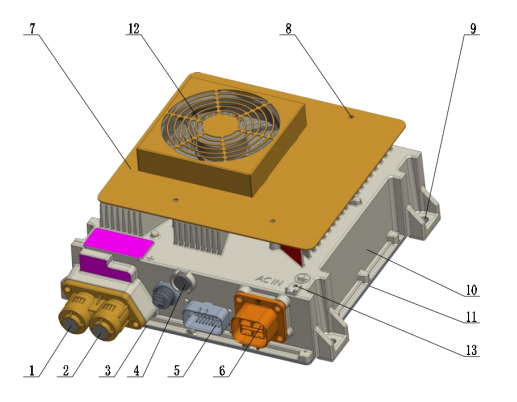

Overview of the main structural components

Basic Function

The First Power OBC converts three-phase AC into DC while maintaining galvanic isolation between the public AC grid and the DC system of the industrial fleet. This setup facilitates efficient battery charging while ensuring the safety of both grids. The CAN protocol controls battery charging, with the charger regulating current and voltage based on CAN-provided values. As a protective measure, if no CAN signals are received for approximately 0.2 seconds, the unit suspends charging to prevent damage to the battery.

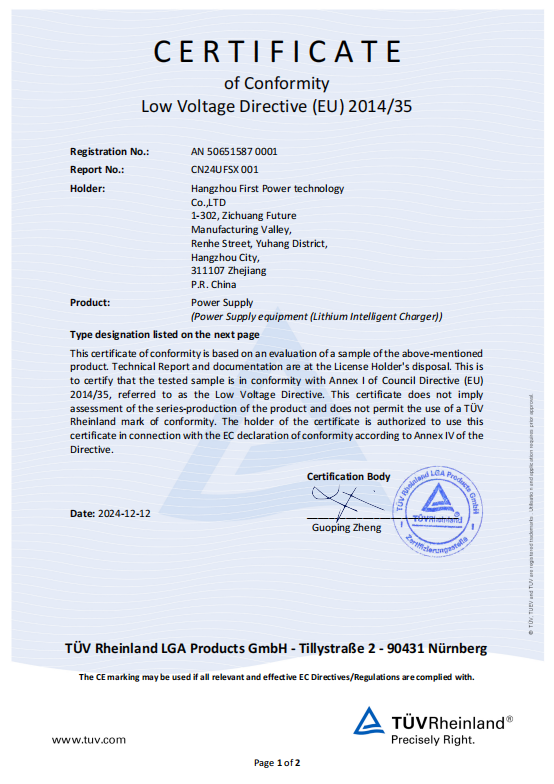

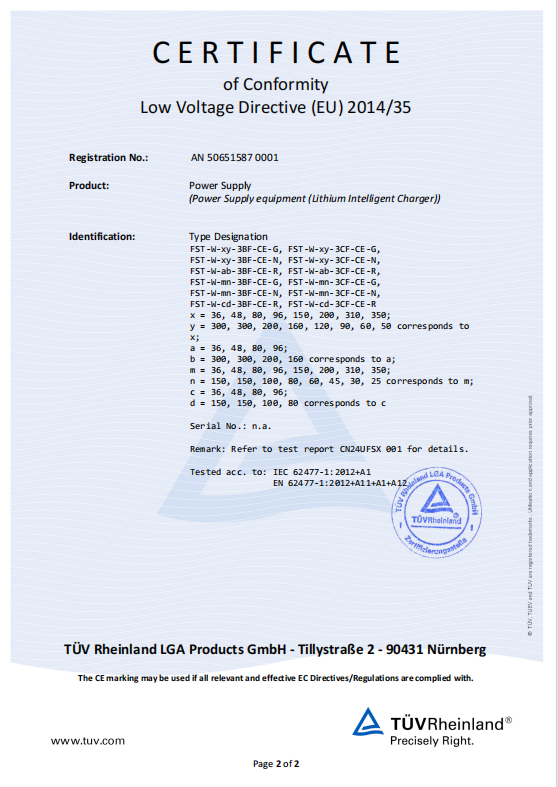

certificate
