Product Description

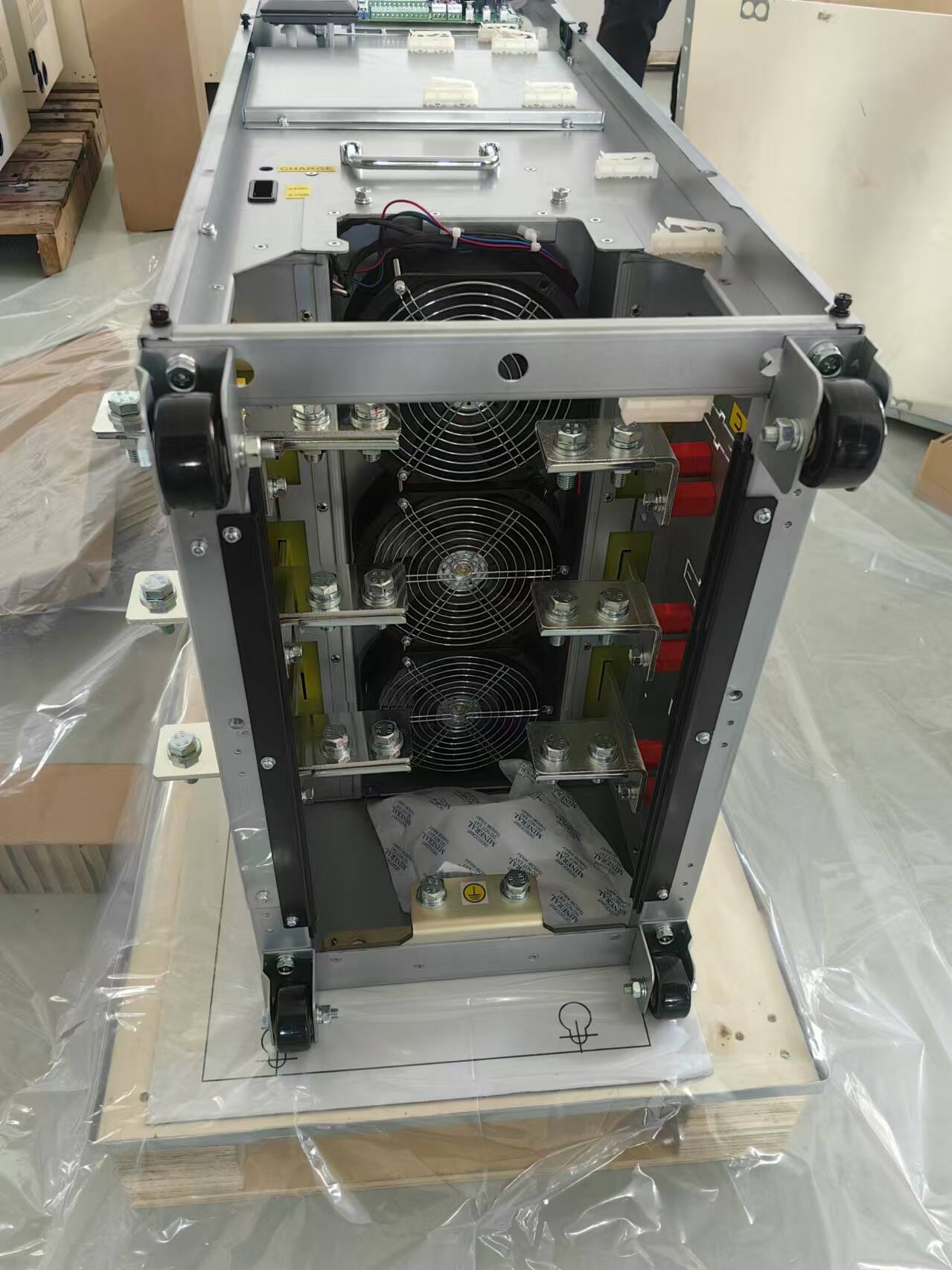

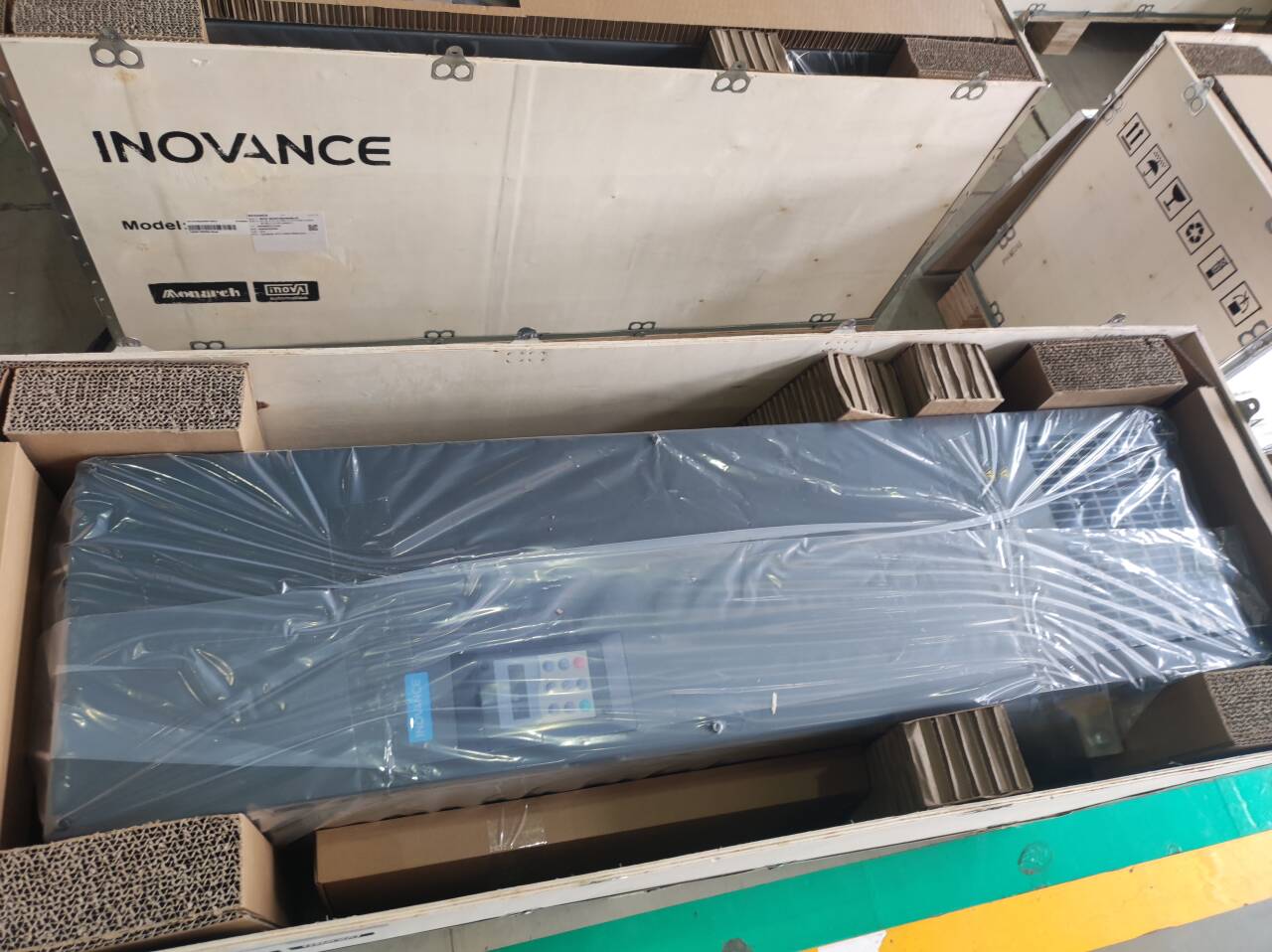

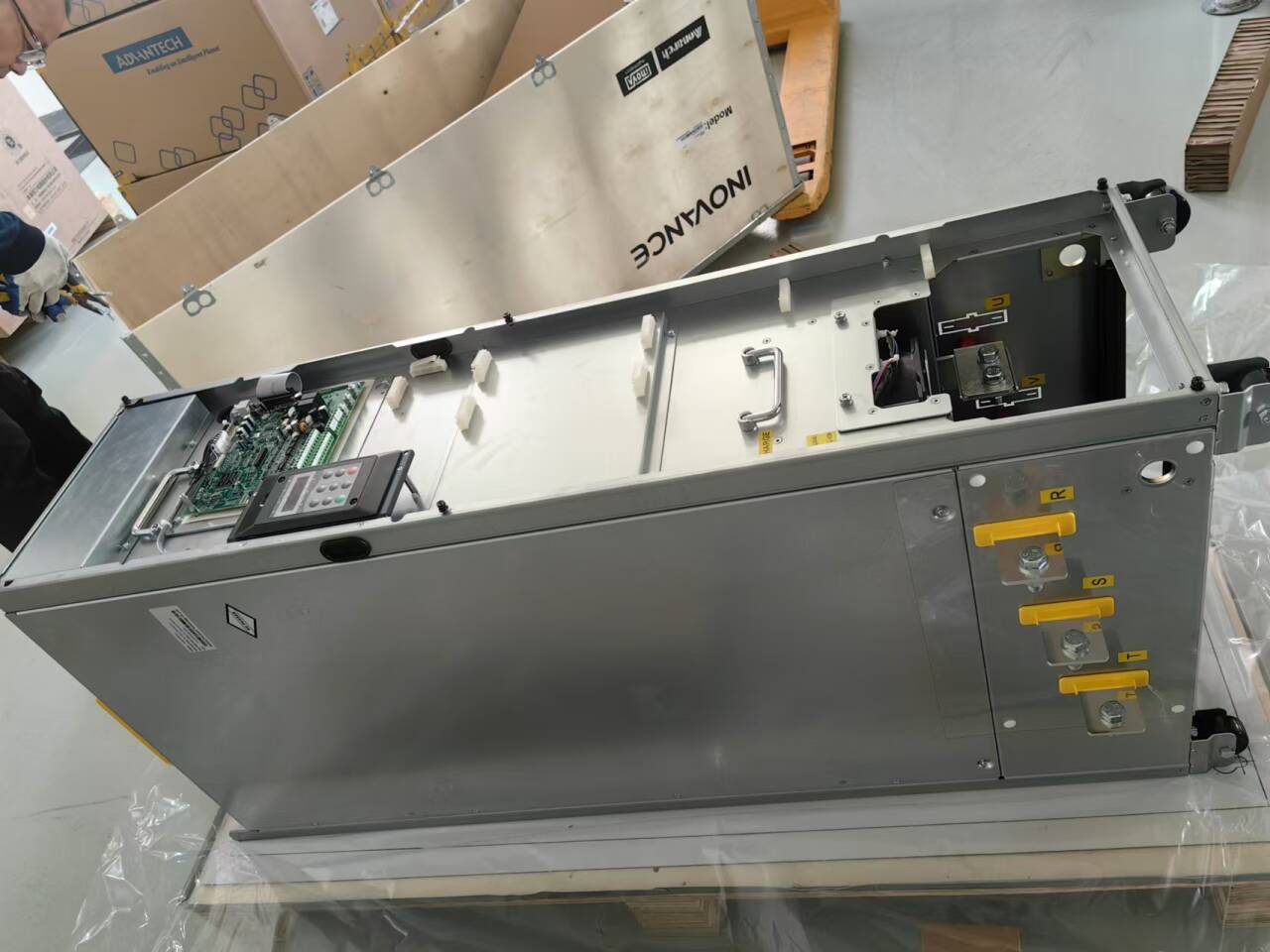

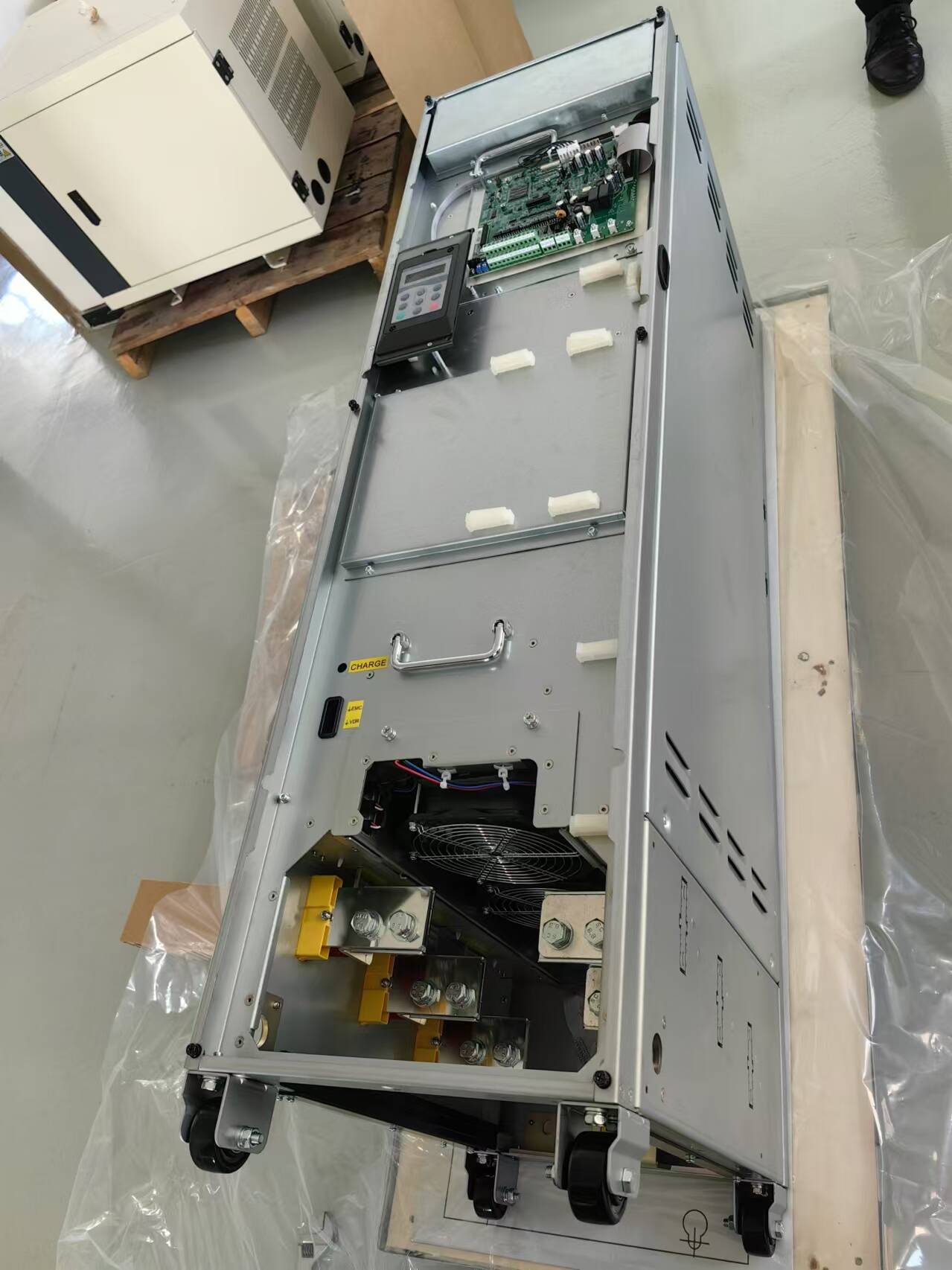

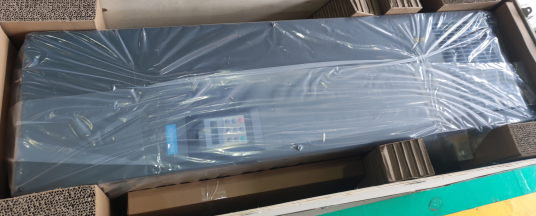

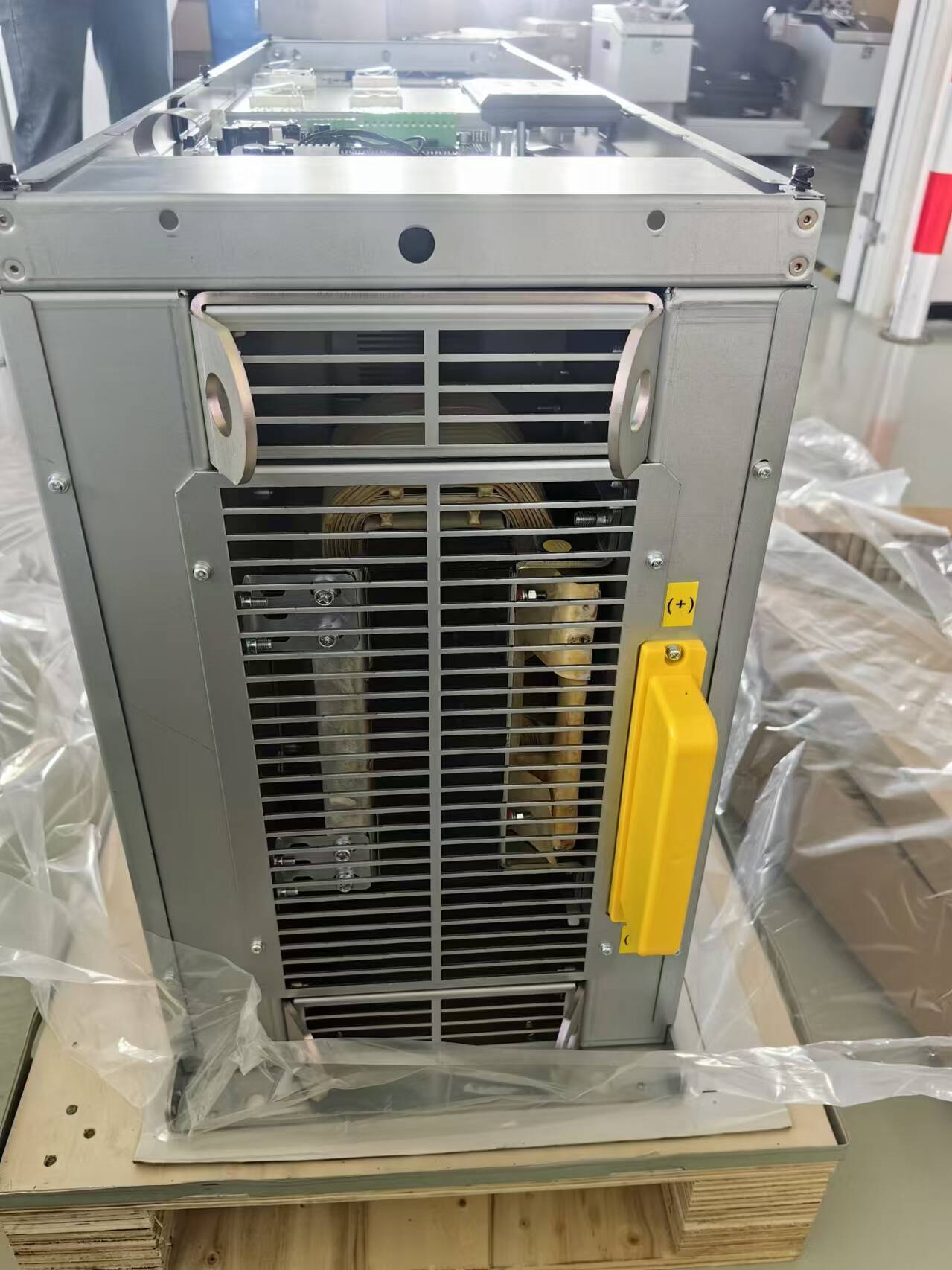

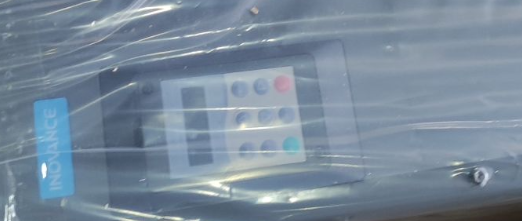

Physical picture

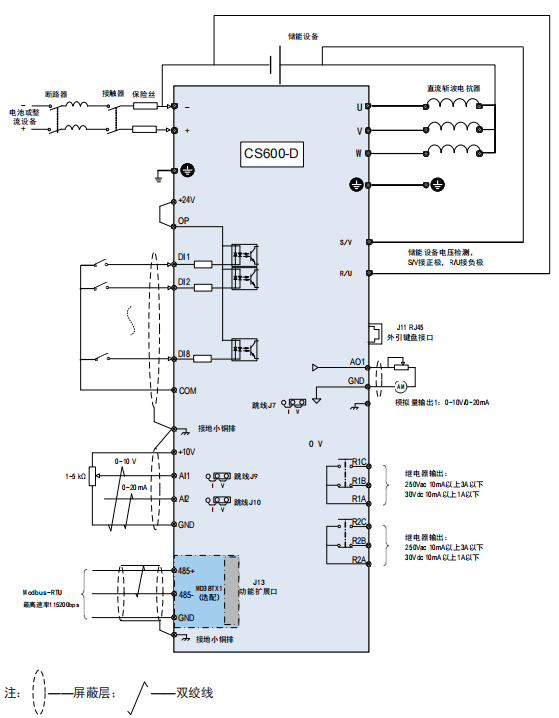

Installation and wiring

install

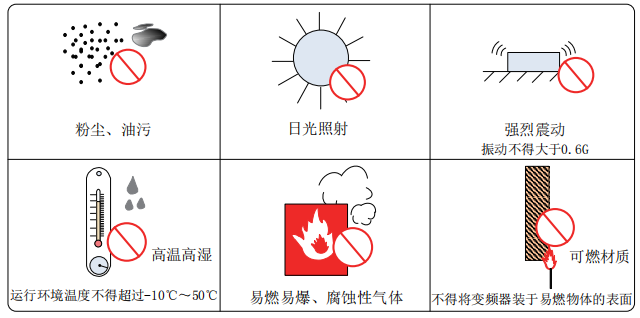

Installation environment

1. Environmental temperature: The ambient temperature has a significant impact on the lifespan of the bidirectional converter, and it is not allowed for the operating environment temperature of the bidirectional converter to exceed the allowable temperature range (-10 ℃~50 ℃).

2. Install the bidirectional converter on the surface of a flame-retardant object, with sufficient space around for heat dissipation. Bidirectional converters are prone to generating a large amount of heat during operation. And install it vertically on the mounting bracket with screws.

3. Please install in a location that is not prone to vibration. The vibration should not exceed 0.6G. Pay special attention to staying away from equipment such as punching machines.

4. Avoid storing in places with direct sunlight, humidity, and water droplets.

5. Avoid storing in places with corrosive, flammable, and explosive gases in the air.

6. Avoid installing in places with oil stains and dust.

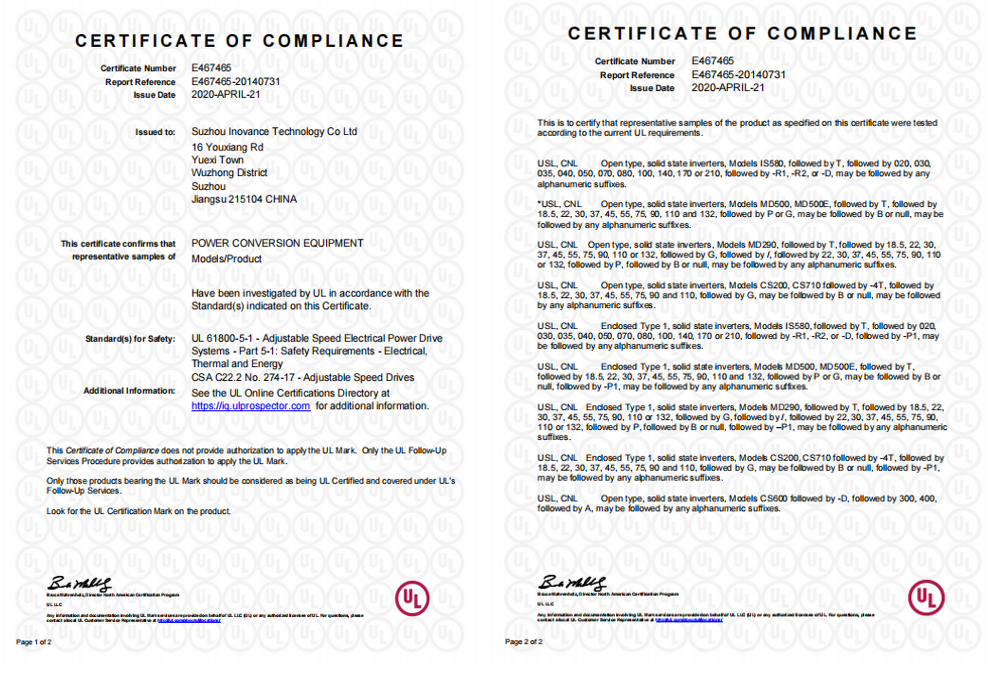

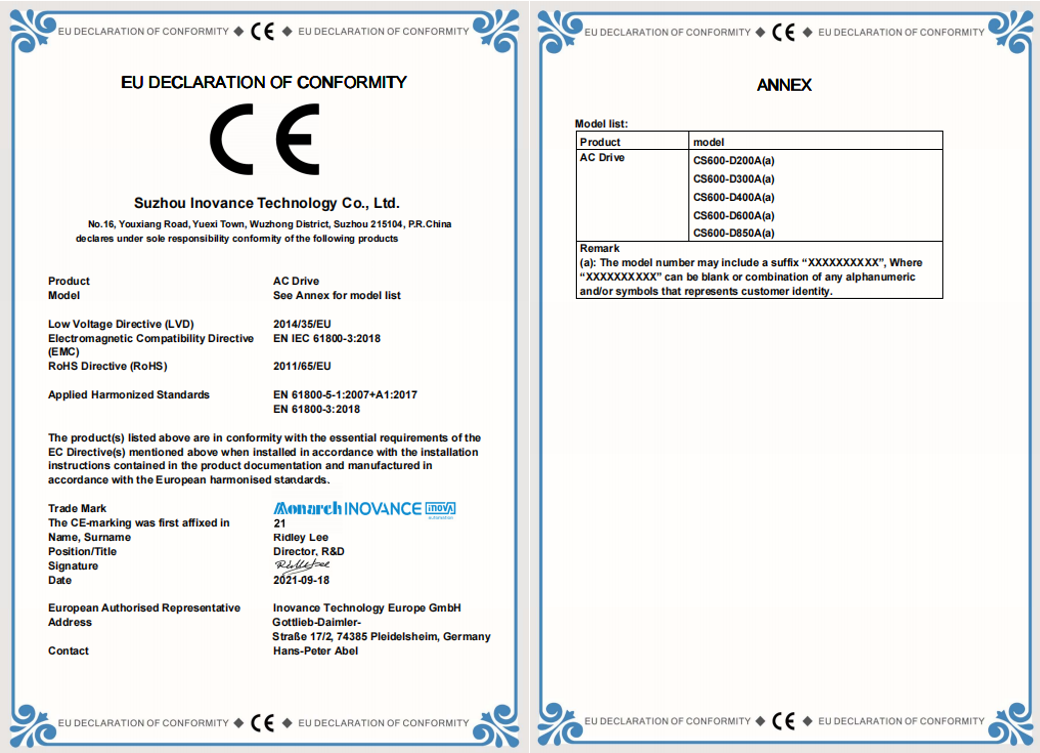

certificate of authorization

authentication
